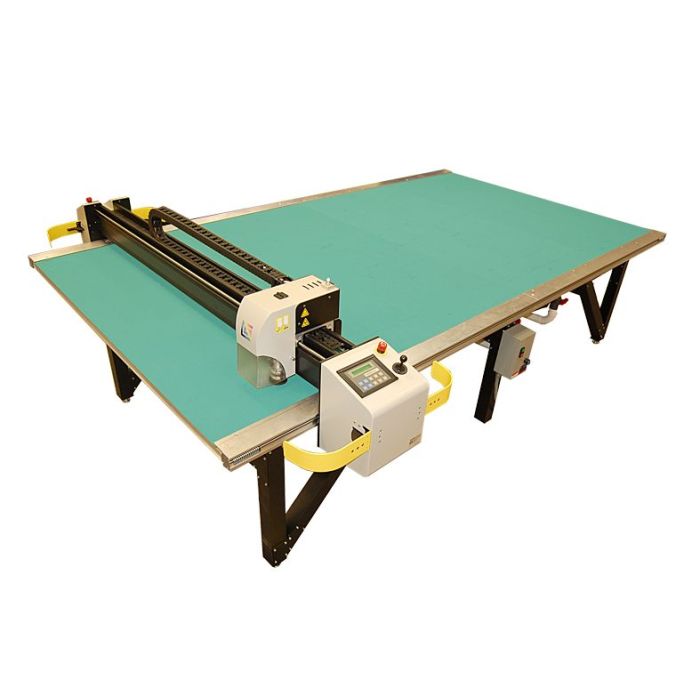

GERBER TECHNOLOGY INDUSTRIAL GERBERCUTTER LOW-PLY DCS 2600 WITH PIVEX AUTOMATIC CUTTING
- Pivex technology allows you to cut complicated designs quickly and precisely
- Pneumatic vacuum shutdown for single-zone or dual-zone vacuum systems
- Precision aiming using a laser pointer
- Complete service and parts supply packages are available
- Operator, technician, and application people training is offered
Optimal precision:
- Material movement is minimised for optimal accuracy, and intricate structures are cut with exceptional precision
- For best edge quality, the system reduces or eliminates overcuts and hangers
Enhanced automation:
- Lean manufacturing is streamlined with specific system designs that remove extra manpower and processes. It also connects with current manufacturing lines
- The cutting-edge CutWorks® software automates component and ply positioning for increased efficiency and material usage
Equipment longevity:
- Optional Ingress Protection protects critical electronic components against external contaminants such as conductive carbon particles, dust, and moisture
Specification
Characteristics |
|
|
Fabric height | Single-ply |
|
Cutting Speed (maximum) | 1,1 m/second | 45 in/second |
Head acceleration (maximum) | 0.5 G | 200 in/sec^2 |
Machine Dimensions | Length: 3,7 - 7,3 - 9,1 - 11 - 12,8 - 14,6 - 16,5 - 18,3 - 20,1 - 21,9 - 23,8 - 25,6 - 27,4 - 29,3 - 31,1 - 32,9 - 34,7 - 36,6 m
Width: 1,4 - 2,4 - 3 - 3,6 - 4,2 - 4,8 m | Length: 12, 24, 30, 36, 42, 48, 54, 60, 66, 72, 78, 84, 90, 96, 102, 108, 114, 120 ft.
Width: 4.7, 7.8, 9.8, 11.8, 13.8, 15.8 ft.
|
Cutting Area (no laser pointer) | Length: 2,8 - 6,5 - 8,3 - 10,1 - 11,9 - 13,8 - 15,6 - 17,4 - 19,3 - 21,1 - 22,9 - 24,7 - 26,6 - 28,4 - 30,2 - 32,1 - 33,9 - 35,7 m
Width: 0,88 - 1,8 - 2,41 - 3,02 - 3,63 - 4,24 m | Length 9.2, 21.2, 27.2, 33.2, 39.2, 45.2, 51.2, 57.2, 63.2, 69.2, 75.2, 81.2, 87.2, 93.2, 99.2, 105.2, 111.2, 117.2 ft.
Width: 34.77, 70.77, 94.77, 118.77, 142.77, 166.77 in.
|
Table heights | 0.8 or 0.9 m | 31.5 or 36 in |
Electrical Requirements |
|
|
Control and Drive System | 110V@20 amps, 200V-240V@10 amps | Single phase 50/60Hz (4 wire) |
Table Vacuum | 220-440V, 3-phase, 60 Hz, 10-32 amps 220/380/440V, 3-phase 50 Hz, 80 amps
|
|
Compressed Air | 14 liters/min. @ 5.5 – 8.2 bar
| 0.5 SCFM @ 80 – 120 PSI |
Operating Environment |
|
|
Temperature (maximum) | 43 Celsius | 110 Fahrenheit |
Humidity (maximum) | 95% (non condensing) |
|
Vacuum System | 760m above sea level | 2,500 m above sea level |
